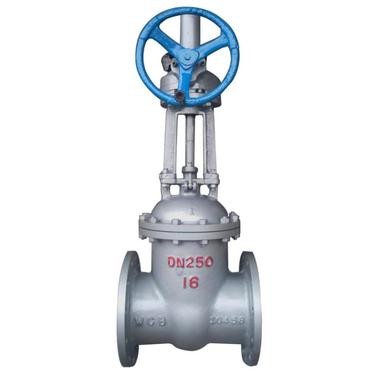

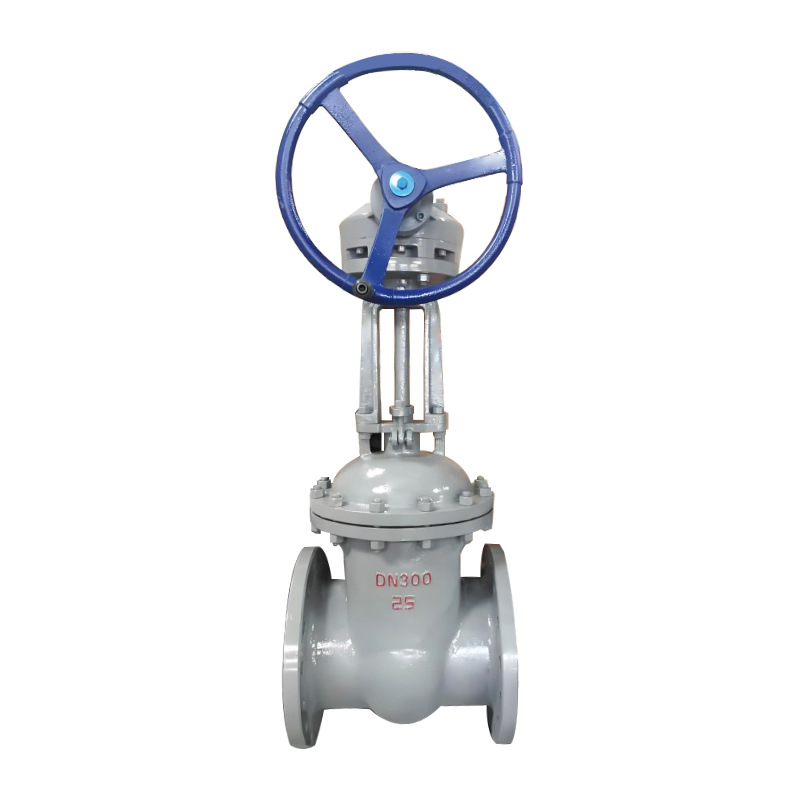

Umbrella gear cast steel gate valve
- Connection method: flange
Umbrella gear cast steel gate valve is a knife gate valve that combines umbrella gear transmission mechanism and cast steel material, mainly used for fluid control in the industrial field.
Cross Colours Camo Print Tank half mengo details
Low fluid resistance: The vertical movement of the gate allows the fluid to flow smoothly through the valve, reducing energy loss in the pipeline system. Good sealing performance: Excellent sealing materials and structural design ensure good sealing performance and prevent fluid leakage. Effortless operation: The umbrella gear transmission mechanism makes operation more effortless and supports remote operation and automation control.
Parameter:
- Nominal diameter range: DN50- DN1200
- The nominal pressure ranges from 1.0MPa to 1.6MPa
- Working temperature range: -29 ℃ -550 ℃
Material and sealing:
- The valve body material is cast steel, which combines strength and corrosion resistance, and is suitable for industrial media environments.
- The valve seat sealing ring can be made of nitrile rubber, EPDM rubber, fluororubber, etc., to meet the sealing requirements of different media; Some designs adopt hard alloy welding technology to enhance sealing durability.
