- Sealing method: hard seal

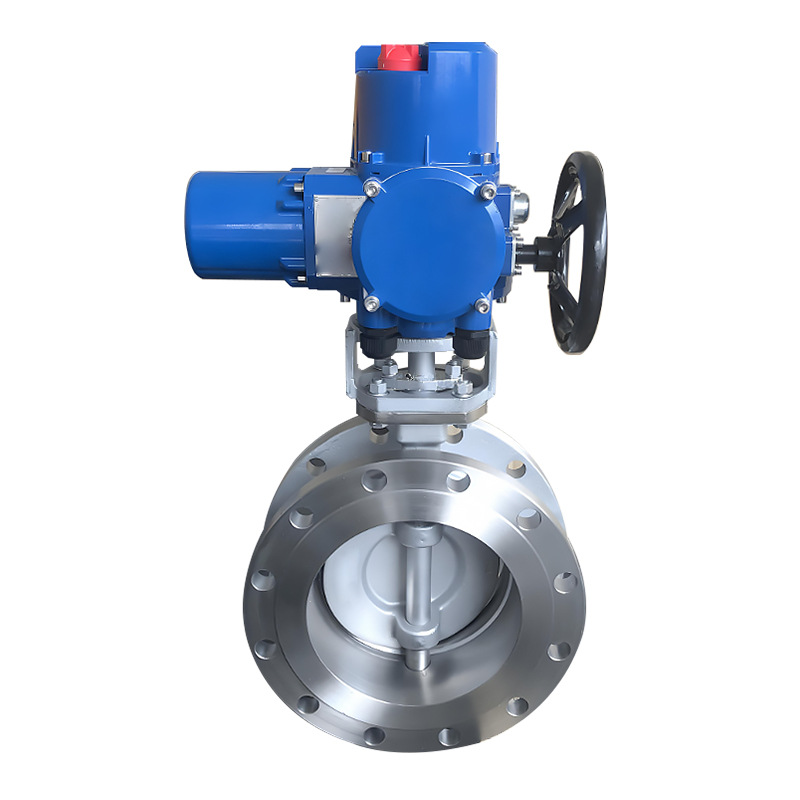

Electric hard sealed butterfly valves have the characteristics of simple structure, easy operation, and good sealing performance, and are widely used in various industrial fields, such as building materials: mining, power, chemical industry, etc.
Cross Colours Camo Print Tank half mengo details
Electric hard seal butterfly valve is a fluid control device mainly used to regulate or cut off the flow of medium. It controls the rotation of the butterfly plate through an electric actuator to achieve opening, closing, and adjusting functions.Compact structure, small volume, light weight, easy to install and operate. It is achieved by controlling the rotation of the butterfly plate through an electric actuator (such as an angular stroke electric actuator) to open, close, and adjust the valve.
- Nominal diameter: DN50~DN2000
- Nominal pressure: 0.6MPa to 4.0MPa
- Applicable temperature: -40 ℃~650 ℃
- Applicable media: water, steam, oil, corrosive chemical media, coal gas, air, etc
- Sealing form: Three eccentric multi-level metal hard seal
- Valve body material: cast steel (WCB), stainless steel (304/316/316L)
- Butterfly plate treatment: sealing surface welded with cobalt based hard alloy, strong wear resistance
- Drive mode: electric (switch type/regulating type), supporting AC220V/380V or DC24V power supply
