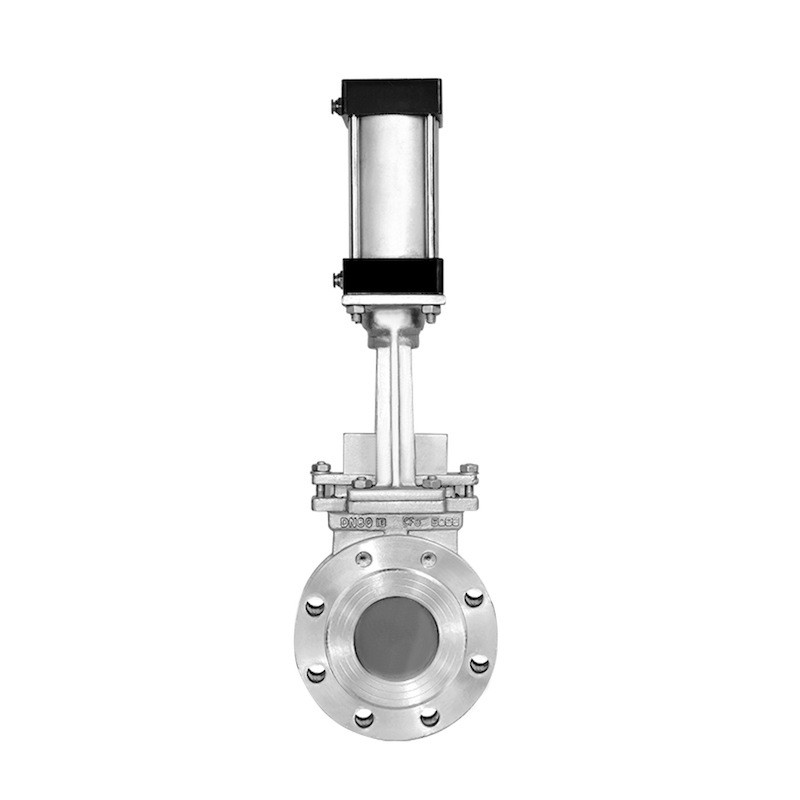

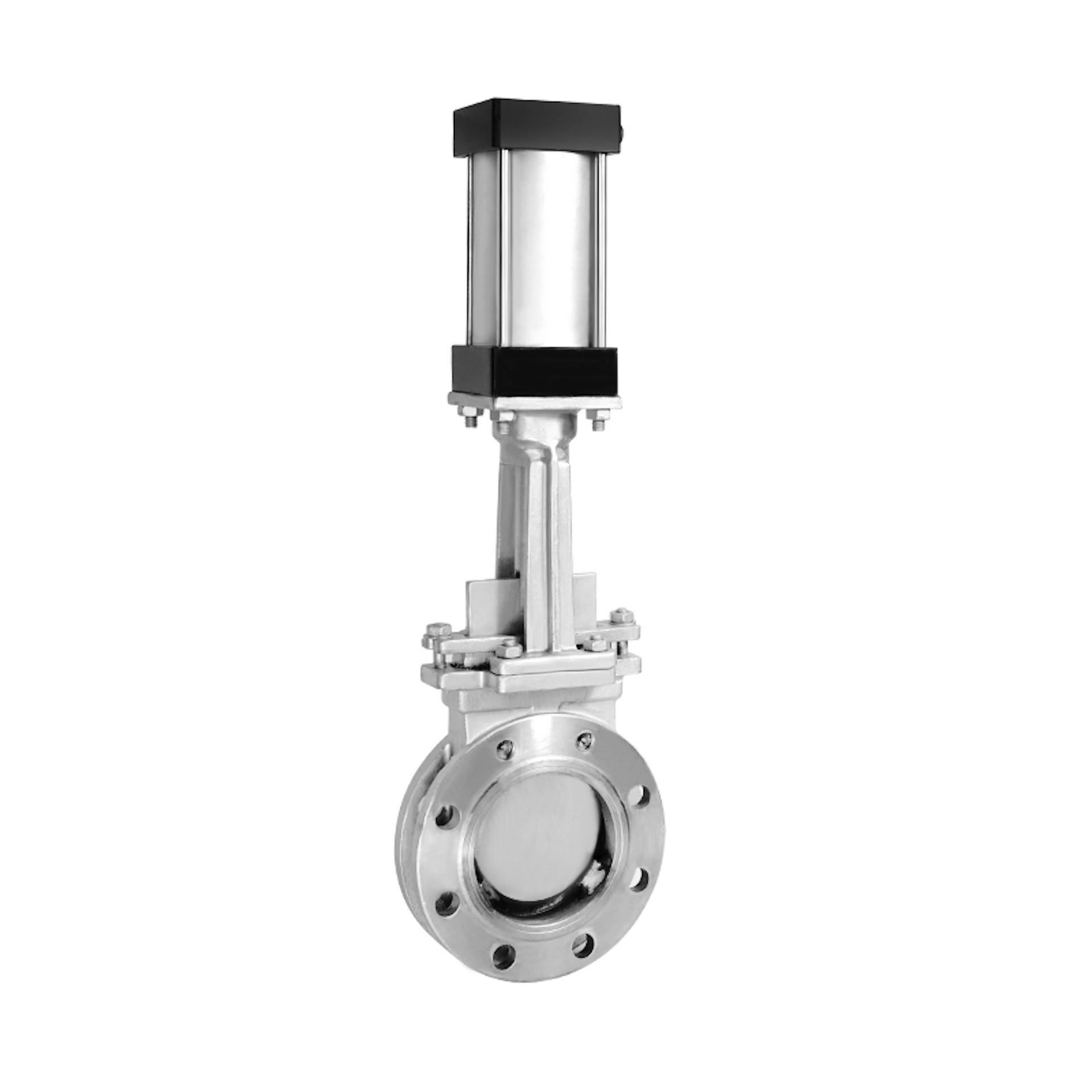

Pneumatic stainless steel knife gate valve

Catalog: Knife Gate Valve

Model: PZ673W-10P

Material: Stainless steel

Connection: flange

Warranty: 1 year

Pneumatic stainless steel knife gate valve, double acting gate valve, 304 circular slurry gate valve, high temperature

Valve, knife gate valve, stainless steel knife gate valve

The core function of pneumatic stainless steel knife gate valve is to accurately control fluid on/off, drive the gate opening and closing through pneumatic actuator, and realize the on/off operation of the medium inside the pipeline (such as gas, liquid, dusty materials, etc.).

Product Introduction

Pneumatic stainless steel knife gate valve is a specialized valve with stainless steel core components such as valve body and gate plate, and equipped with pneumatic actuator. It combines the corrosion resistance of stainless steel, the automation characteristics of pneumatic drive, and the shear and anti blocking function of knife gate plate. It is widely used in medium and low pressure pipeline systems that transport corrosive and particulate/fiber media. It is an ideal fluid control component for corrosion-resistant working conditions in industries such as chemical, pharmaceutical, food, and environmental protection.

Working principle: Pneumatic knife gate valve enters the pneumatic actuator through compressed air, drives the piston to move, and then drives the valve stem and gate to move through the torsion shaft, achieving valve opening and closing.

Its pneumatic actuators are divided into single acting (spring driven piston, opened/closed by spring with piston valve when gas is cut off), double acting (gas on/off, requiring a two position five way solenoid valve) and other types to meet different control requirements.

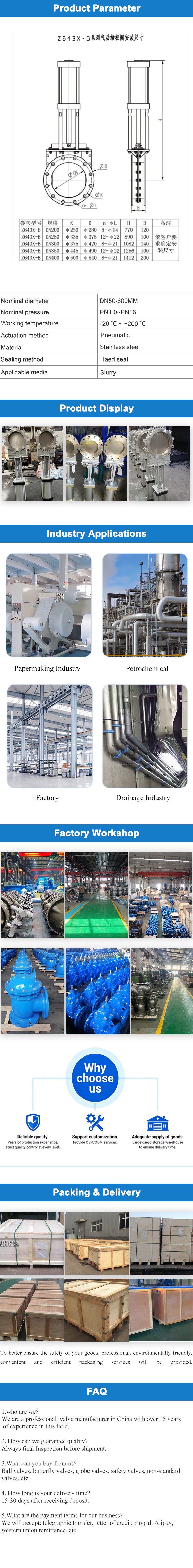

Product Parameters

Product Introduction

Nominal diameter dn50-600mm

Nominal pressure 1.0-1.6Mpa

Working temperature -29 ℃ -650 ℃

Application industries: Widely used in industries such as papermaking, petrochemicals, mining, drainage, and food.

Product Features

Compact structure: Reasonable design, lightweight and material saving, small volume and light weight, easy to install and disassemble;

Easy to operate: driven by pneumatic actuator, fast switching speed.

And accessories such as solenoid valves, air source processing triplets, limit switches, etc. can be configured to achieve local control or remote centralized control (such as remote operation in the control room), greatly saving manpower and time and improving safety.

Reliable sealing: Stainless steel material is corrosion-resistant and prevents sealing leakage caused by corrosive media

Efficient circulation: Smooth channels, low flow resistance, smooth passage of media, and reduced energy loss.

Strong corrosion resistance: The valve body and gate are made of stainless steel, meeting the strict anti-corrosion requirements of chemical and pharmaceutical industries.

The surface has been polished, smooth and easy to clean, meeting the hygiene requirements of the food and pharmaceutical industries.

Cutting efficiency:

Quickly cut off long fibers and small particles in the medium when closing to prevent entanglement and blockage;

Optimization design of the clearance between the gate and the flow channel, quickly disengaging from the sealing surface when opened, reducing friction loss, and adapting to frequent opening and closing conditions.
